ERTMS CAMCORDER

The ERTMS Camcorder, a tool for diagnosing and recording the European Rail Traffic Mangement System(ERTMS) is desinged to record and analyze real-time data on train operations, signaling systems and onboard ERTMS equipment.

Function

 Real-time Display Functionality

  • DIM Screen, Forward-facing Camera Screen

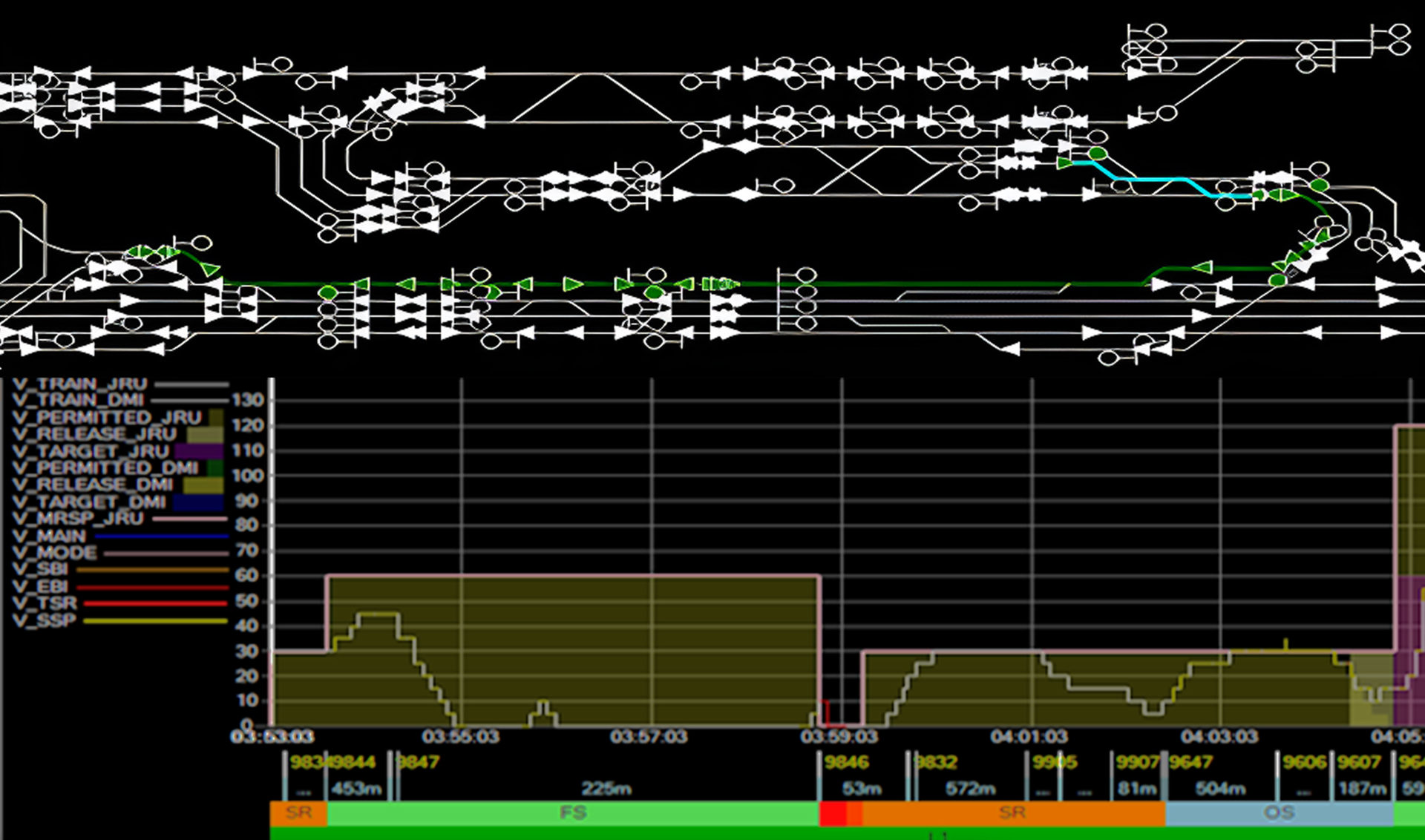

  • Track Map Progress Display Screen
  • Automatic Scroll Screen for Messages between KVC-JRU
  • Speed (Train Speed, Speed Limit) Graph Display Screen


Recording & Player Functionality

  • DMI Screen
  • Track Map Progress Display Screen
  • Automatic Scroll Screen for Messages between KVC-JRU
  • Speed (Train Speed, Speed Limit) Graph Display Screen


Additional Functions

  • Message Extraction Function (PDF, CSV)
  • All Screen Synchronization Functionality during Specific Section Playback
  • Analysis of Messages Outside Specifications

Expected Effects

Technical Operation Verification and Debugging between KTCS-2 Signal Devices in Current Train Tests
