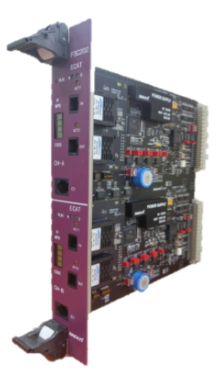

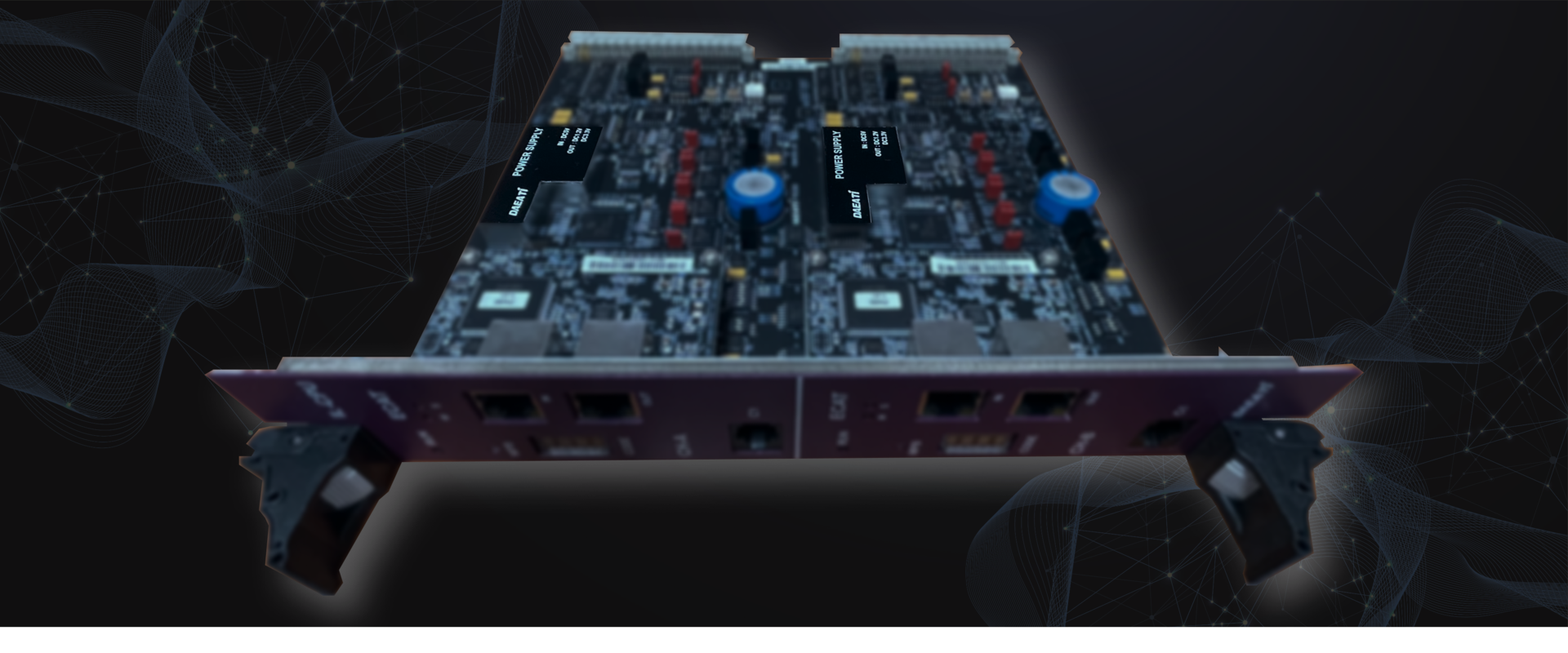

FSC 202 BOARD

Fail-Safe Controller 202 Board

The FSC 202 board is a computer-based safety-critical controller with SIL-4 certification applicable across industrial systems.

Features

  • Platform hardware certified to IEC 61508 SIL3, EN 50126/50128/50129 SIL4 and CE(Conformité Européenne)
  • Incorporates a Safety MCU and Safety RTOS

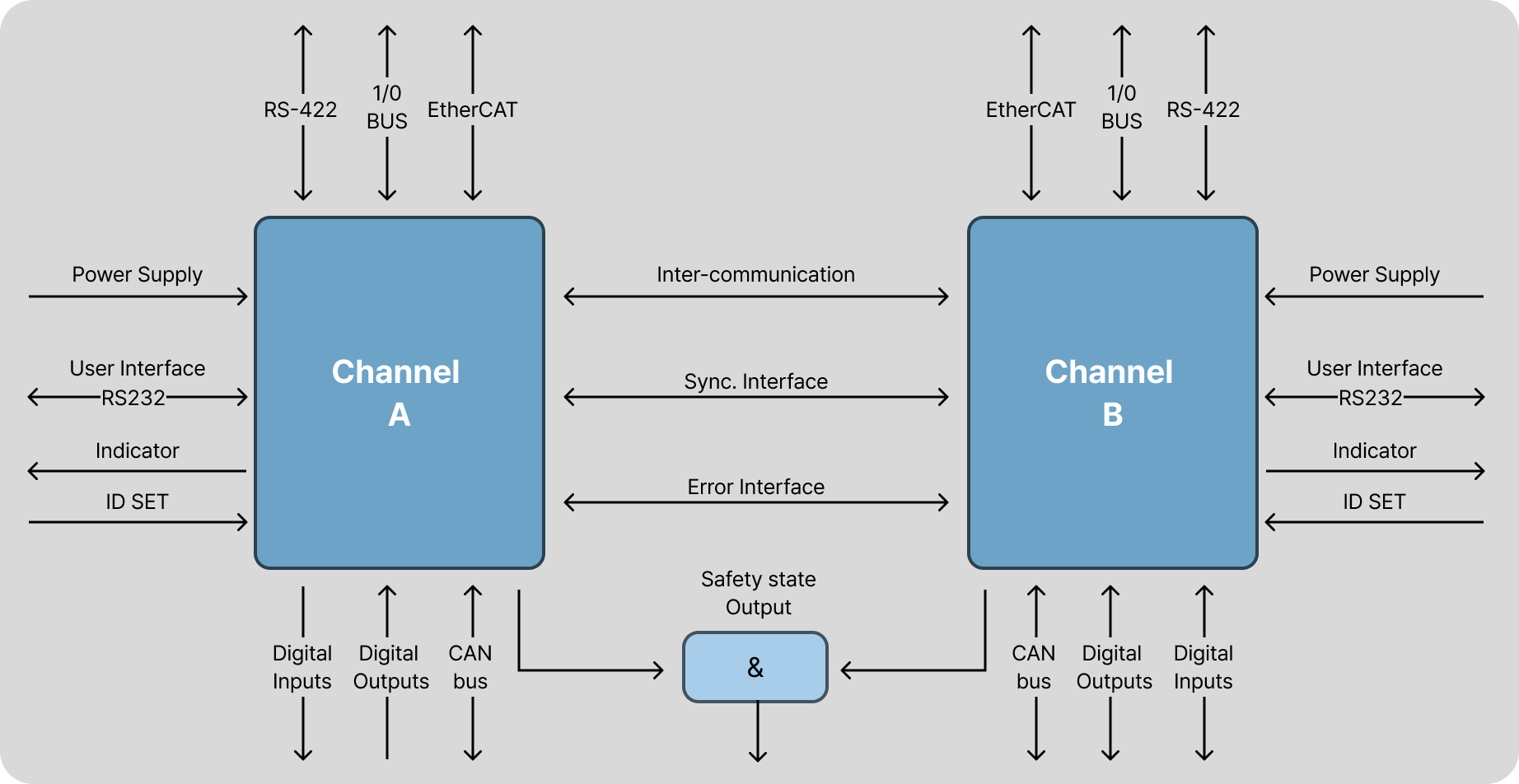

  • Implements a 2-out-of-2 channel architecture
  • Supports system redundancy configurations

Configuration

  • Configurable via software as either an Interlocking Logic Sub-system (ILS) or an Input/Output Sub-system (IOS)
  • Expandable system architecture utilizing EtherCAT for ILS-IOS configuration

Specifications

Communication Interfaces

  • RS-232 1-port (for Maintenance)
  • RS-422/485 4-ports
  • CAN : Max. 1Mbps, 2-ports.
  • I/O : Input 2-points / Output 2-points
  • SPI : 1-port (Max. 18Mhz)
  • Data Bus : Optimized VME (Master Operation)

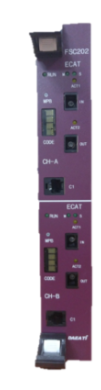

Display & Indicators

  • Operation LED

  • 5×5 Dot-Matrix Display (Status & Alarm Codes)

Power Supply

  • Operation Voltage : DC5V±5% / 4A (Max.)
