TLDS
Track Circuit Level Detection System
The track circuit function monitoring device receives real-time status information from on-site equipment at each station (such as signals, track switches and track circuits) to monitor for faults and various operational conditions. The monitored data is displayed on a monitor and is recorded and managed to allow printing and replay (reproduction) when necessary.
The monitored information is recorded and managed in a way that allows it to be displayed on a monitor and printed. These recorded and managed data serve as reference materials for maintenance personnel in diagnosing track circuit failures.
Additionally, the system receives and analyzes the transmitted and received voltages of the track circuit enabling preemptive identification and prevention of potential faults.
Function

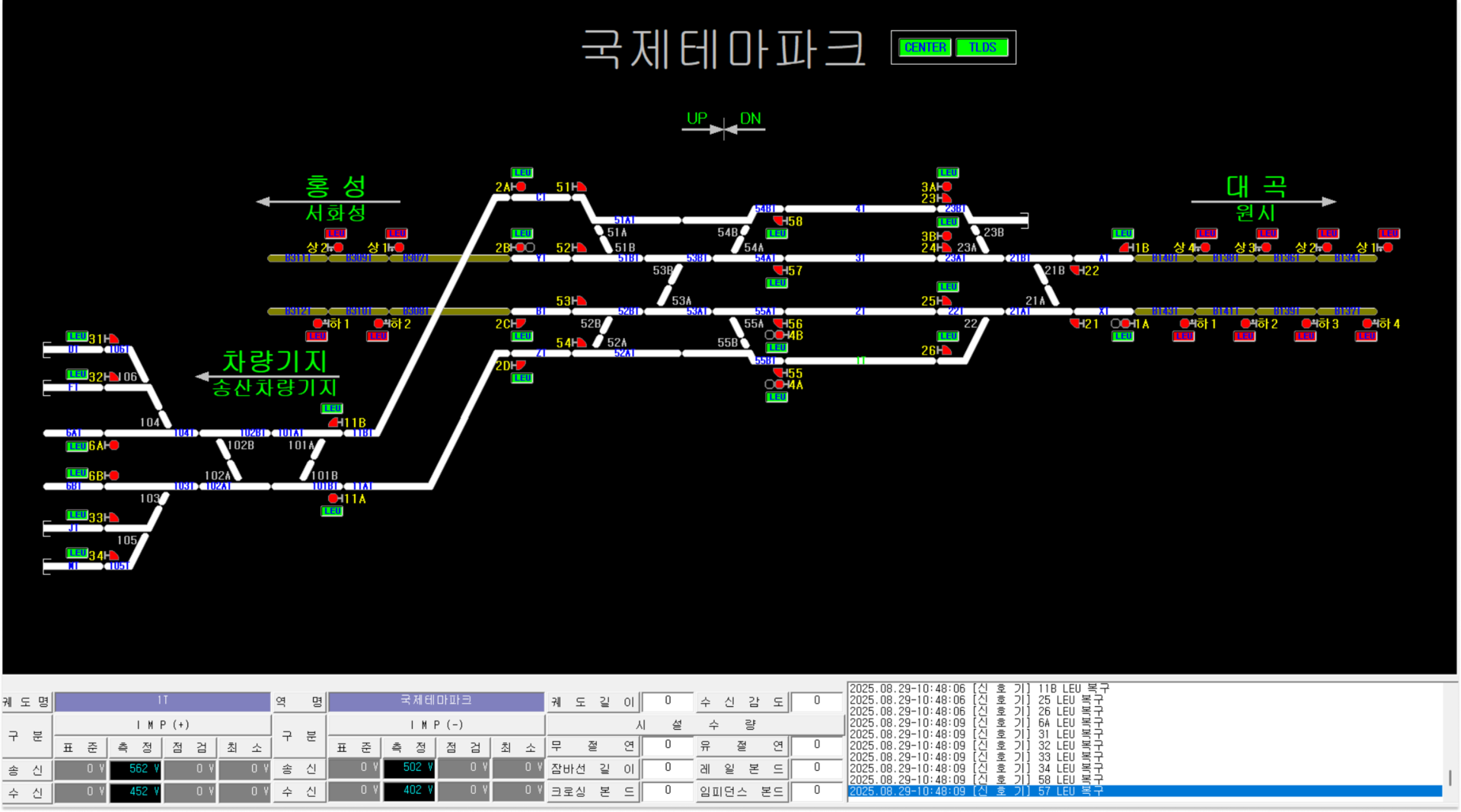

The status information of signal field equipment (signal lights, track circuits and point machines) is displayed on the monitoring screen, enabling fault prevention through real-time monitoring.

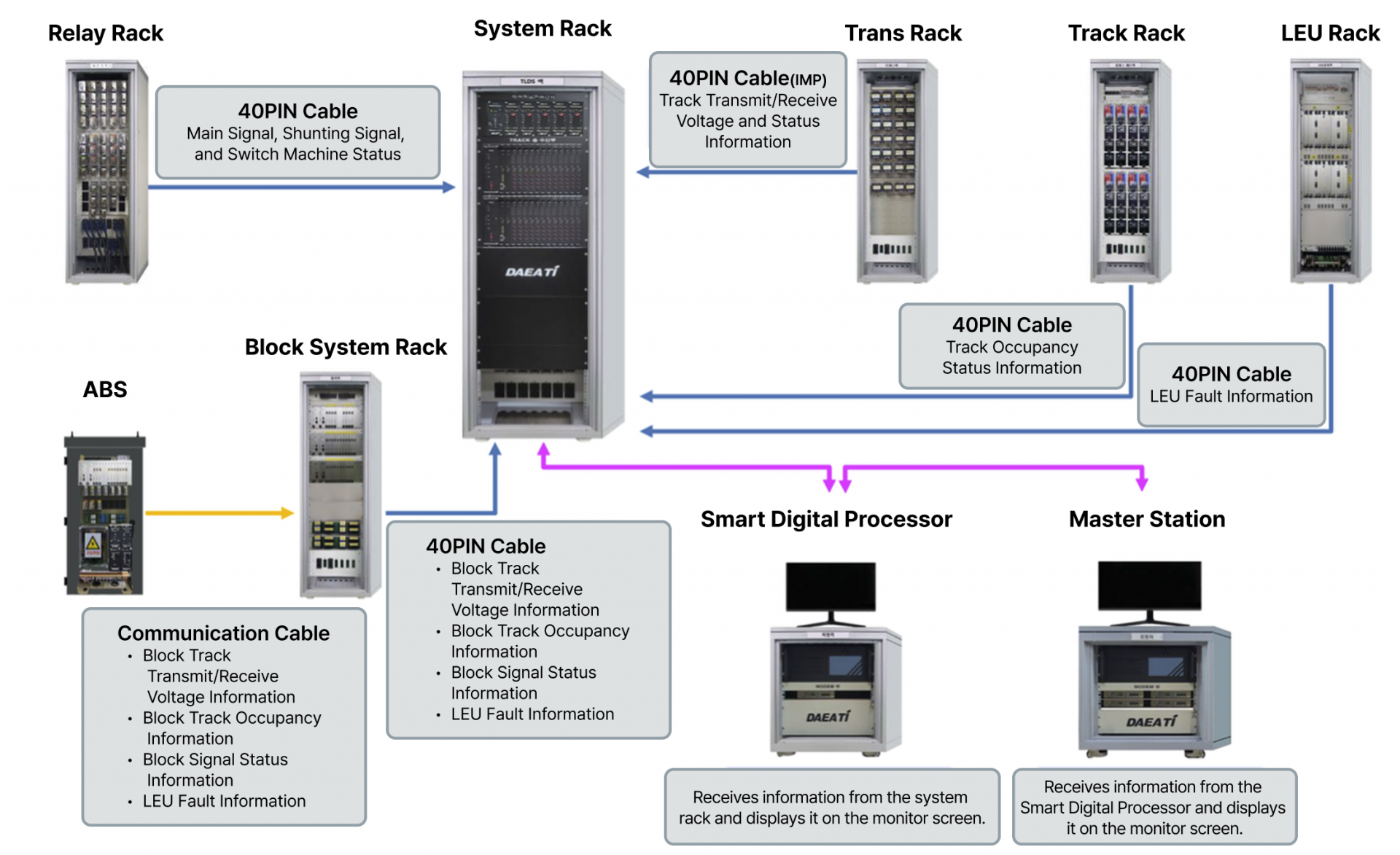

Configuration
